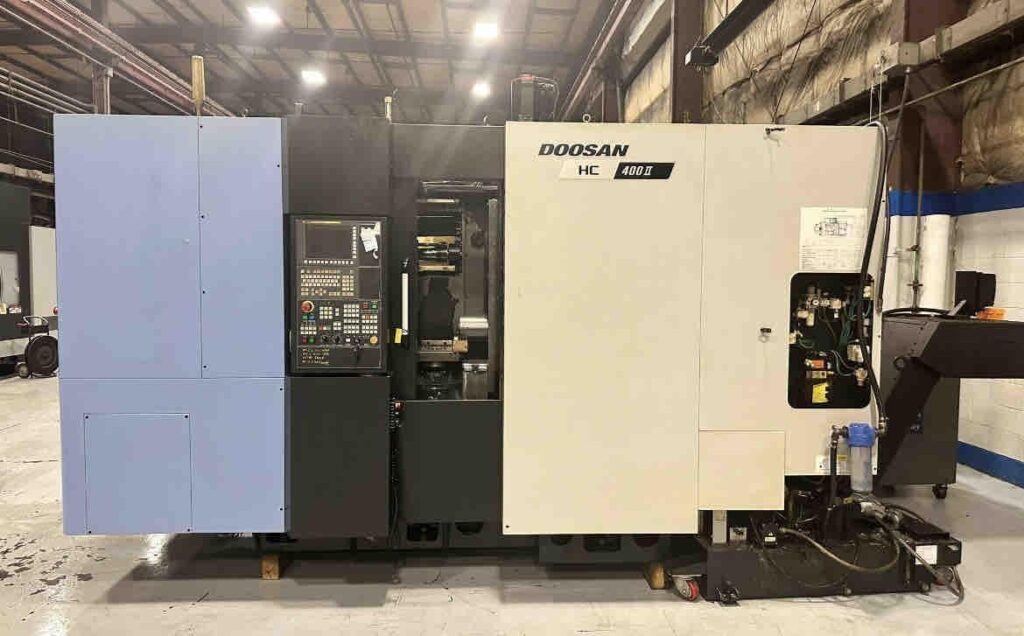

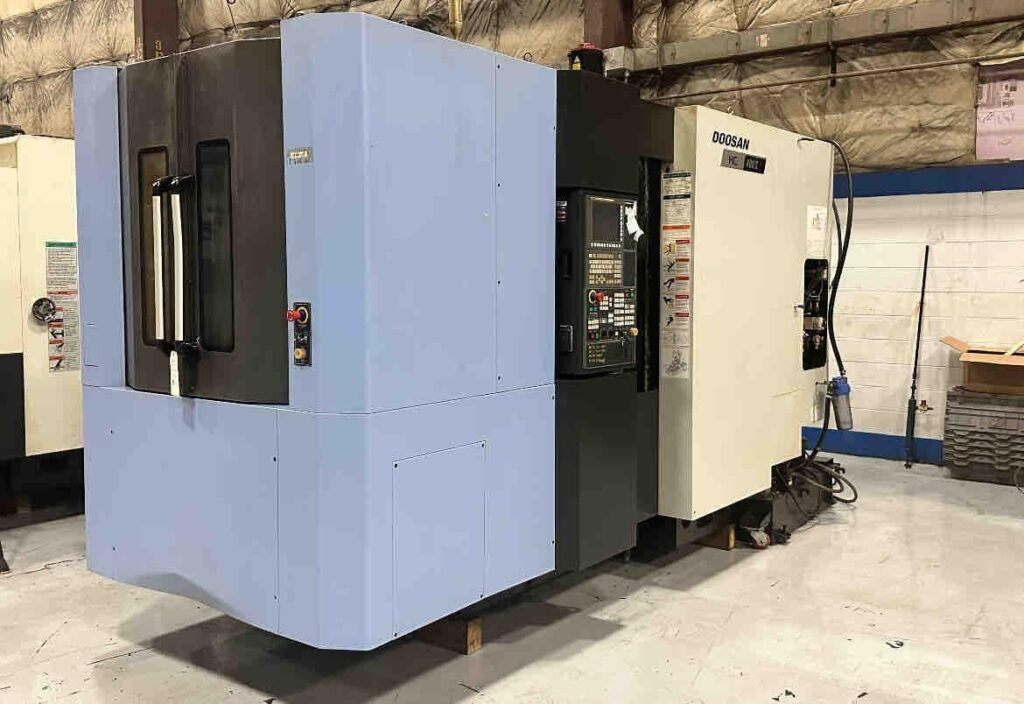

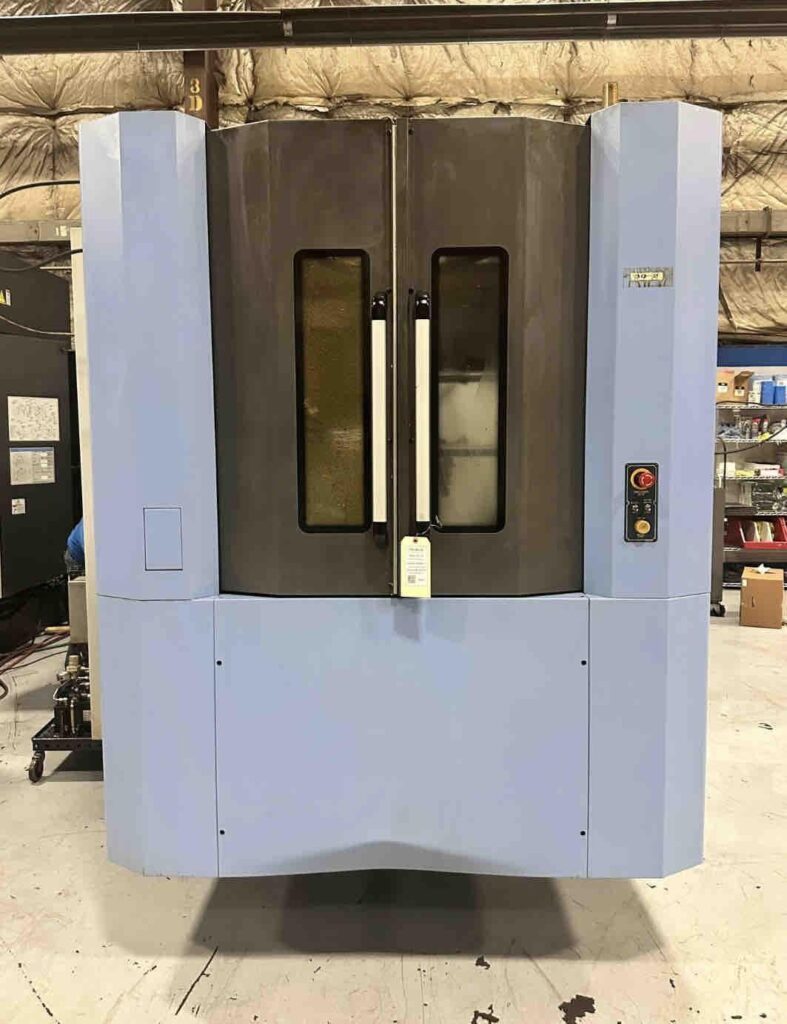

2016 Doosan HC 400II CNC Horizontal Machining Center

$79,500.00

Availability:

1 in stock

BRAND: DOOSAN MODEL: HC 400II CONDITION: used
SKU: iGAM0470005 Weight:24500 LBS 24500 lbs Freight (Item Must Ship Freight)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Email*

Phone*

Company Name*

Shipping Address

Country/Region*

Address*

City*

State*

Zip*

Product Information

Price

Brand

Model

SKU

Weight

Additional Information Required:

Information

Commercial

Residential

Do you have a loading dock?

Yes

Do you have a forklift?

Yes

Financing

Are you interested in Financing for your purchase?

Subscribe to Emails

Be the first to hear about iGAM exclusive offers, sales, markdowns and new arrivals.

About This Item

Specifications:

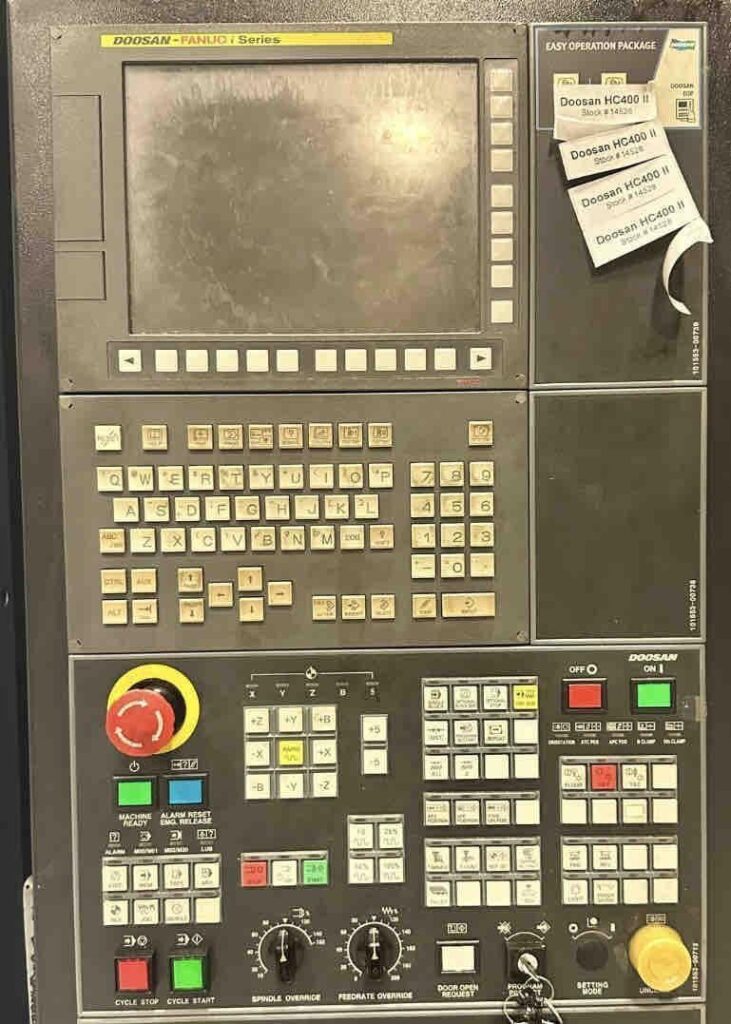

CNC Control	Fanuc i Series
# Axis	4
Pallet-L	19.7″
Pallet-W	19.7″
Max Pallet Load	1,102 lbs
Pallet Indexing (B-axis)	1° Degree
X-axis Travel	23.6″
Y-axis Travel	22″
Z-axis Travel	22.2″
Rapid Traverse Rate (X/Y/Z)	1,575 ipm
Spindle Speed	12,000 RPM
Spindle Taper	CAT 40 Big Plus
Spindle Motor	25 hp
# ATC	60
Coolant Thru Spindle	Yes
Machine Dimensions	182″ x 90″ x 112″
Machine Weight	24,500 lbs

Equipped With:

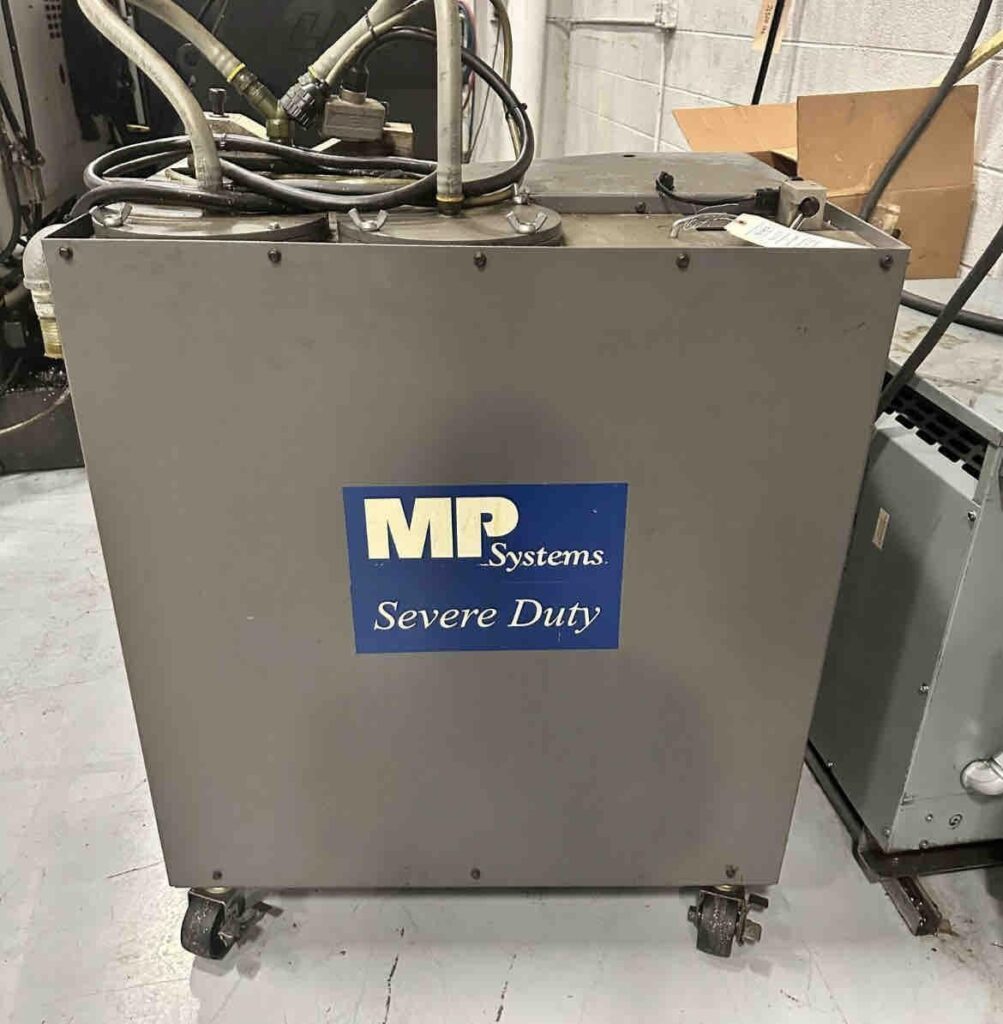

– Fanuc i Series Control- Chip Conveyor- Coolant Tank & Pumps- MP Coolant Systems (HP Coolant Thru Spindle)- Hydraulic Clamping- EZ Guide i- Manual Guide i- 400 Tool Offsets- Auto Tool Measure RMI-Q- Renishaw Probe Interface- Embedded Ethernet- AI Contour Control II
