▸ Key Features:

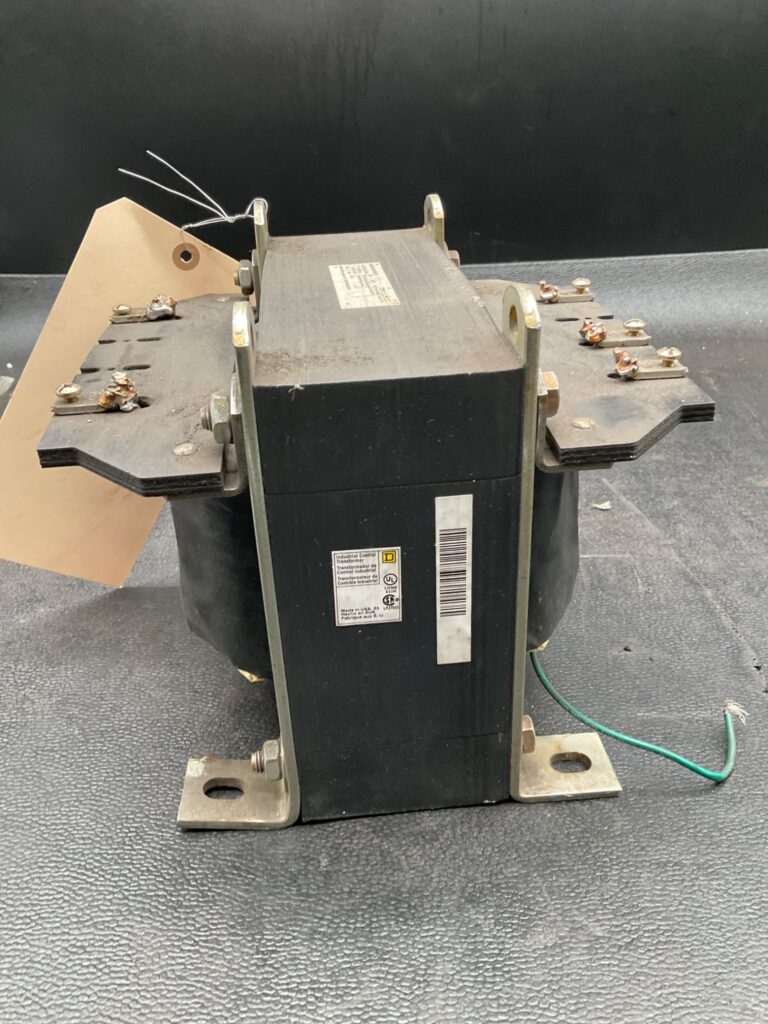

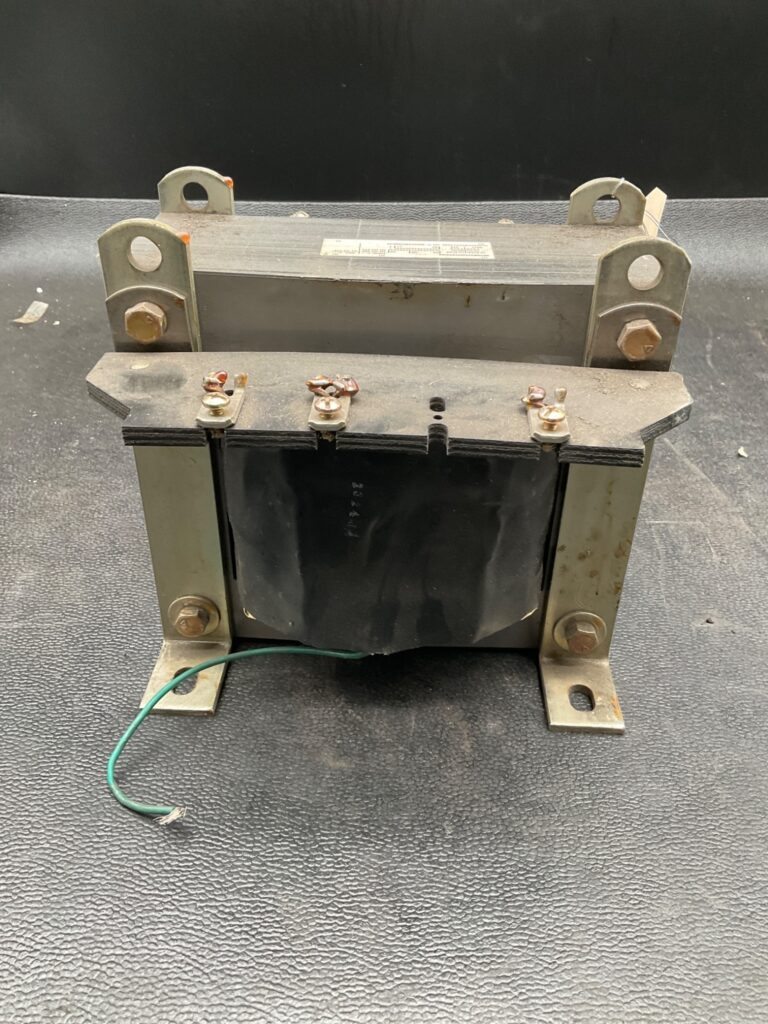

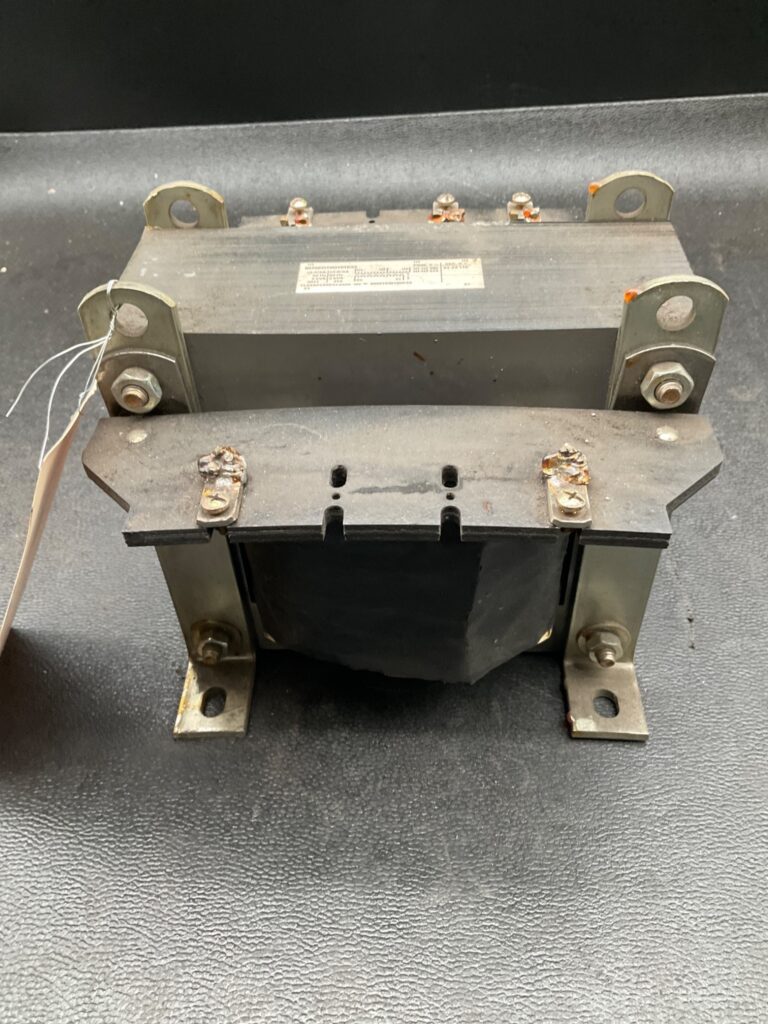

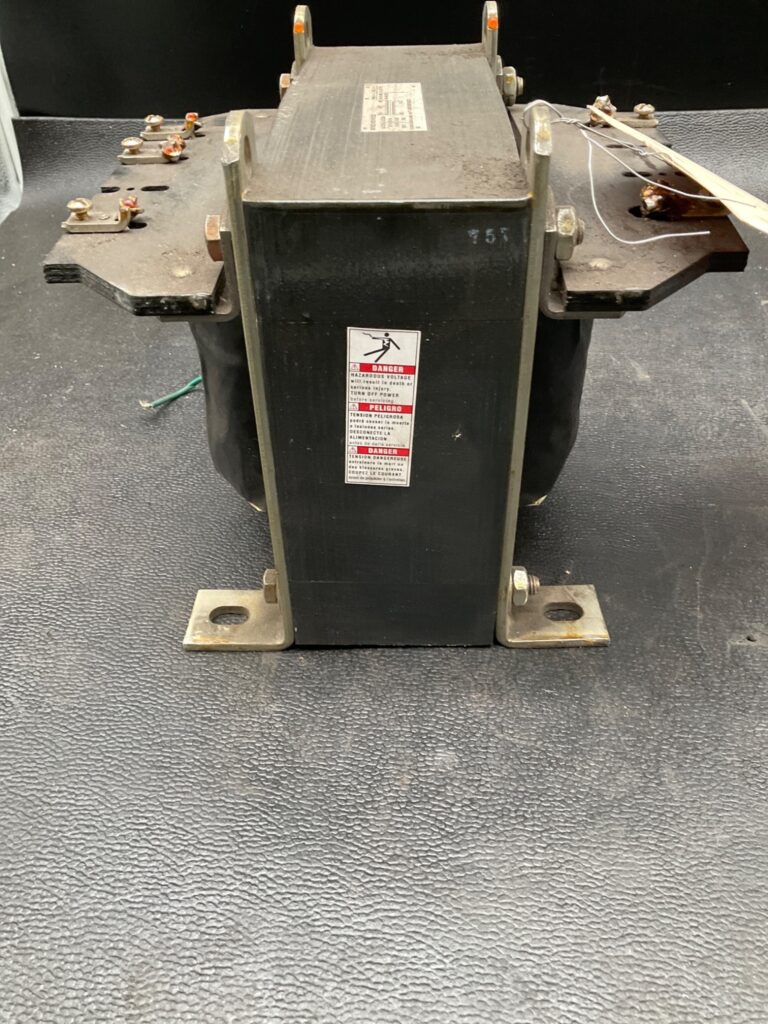

• 3000 VA (3 kVA) industrial control transformer
• 480/575 V primary to 115 V secondary conversion
• Single-phase dry-type construction
• 50/60 Hz frequency capability
• Screw terminal connections for simplified installation
• Suitable for stepping down incoming plant power to standard control voltages
• Rugged enclosure design compatible with industrial electrical panels
▸ Applications:
• Industrial electrical control panels
• Machine tool control circuits
• OEM automation equipment requiring 115 V control power
• Motor starter circuits and lighting relays
• Replacement transformer for Square D 9070 series installations
▸ Alternative Model Numbers:
9070EO10D101
9070EO10D102
9070E010D101E23 (typed variant)
9070E Series Control Transformers
Schneider Electric 9070 Series Equivalents
▸ Common Misspellings or Phrasing:
9070E010D101E23
SquareD 9070EO10D101E23
9070E0D101E23
9070-EO10D101E23
Schneider 9070E010D101
