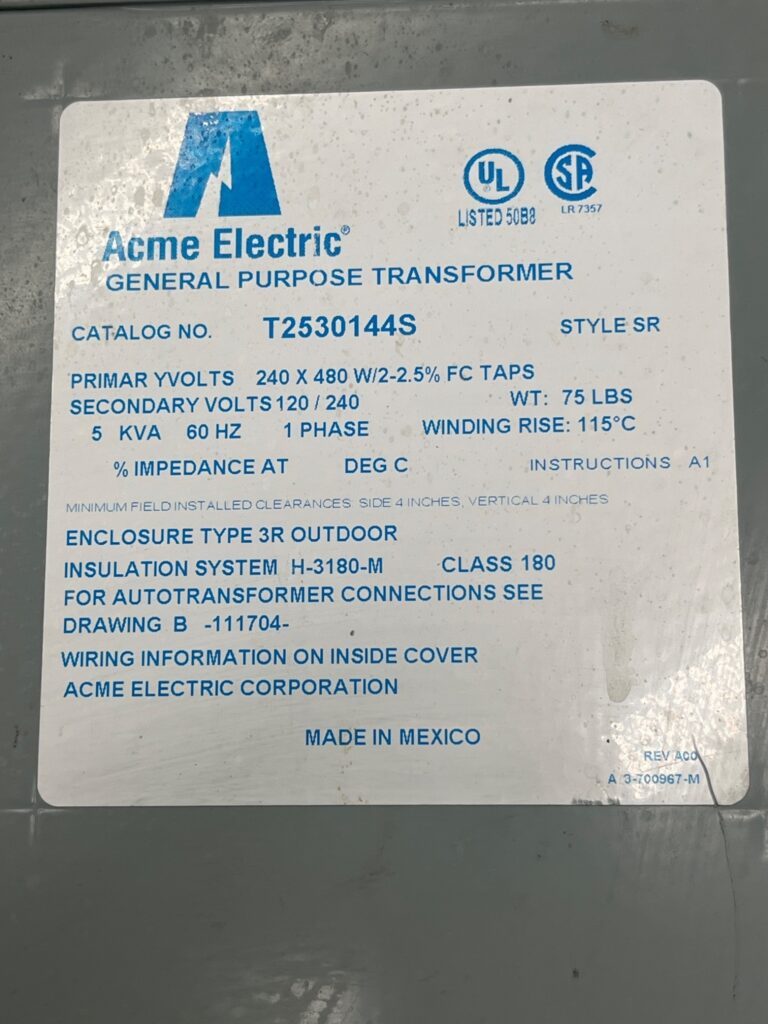

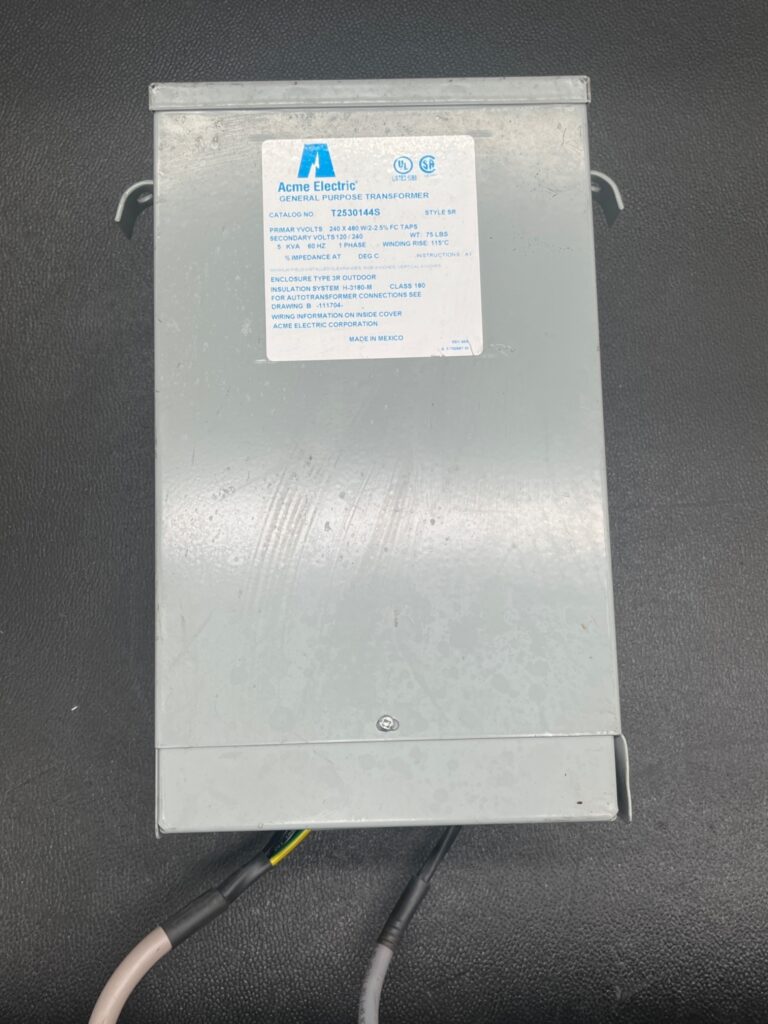

▸ Key Features:
• 5 kVA single‑phase dry-type transformer
• Primary: 240 x 480 VAC with ±2.5% FC taps
• Secondary: 120 / 240 VAC dual-voltage output
• NEMA Type 3R outdoor enclosure
• 115°C winding temperature rise
• Designed for general-purpose power distribution
• Includes factory-installed wiring diagram inside cover
▸ Applications:
• Industrial equipment power distribution
• Commercial electrical systems
• Machine tool control panels
• Lighting and auxiliary service loads
• General-purpose step-up/step-down conversion
▸ Alternative Model Numbers:
T2530100S
T2530130S
T2530140S
T2530150S
T2530160S
(General comparable Acme Type T single-phase models)
▸ Common Misspellings or Phrasing:
T2530144
T-2530144S
Acme Transformer 5KVA
Acme Electric T25301445
2530144S Transformer
