2018 WEISSER VERTOR ML-1L CNC VERTICAL LATHE USED

$64,999.00

Availability:

Out of stock

BRAND: WEISSER MODEL: Vertor ML-1L CONDITION: used
SKU: IGAM0860001 Weight:999 LBS 999 lbs Freight (Item Must Ship Freight)

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Email*

Phone*

Company Name*

Shipping Address

Country/Region*

Address*

City*

State*

Zip*

Product Information

Price

Brand

Model

SKU

Weight

Additional Information Required:

Information

Commercial

Residential

Do you have a loading dock?

Yes

Do you have a forklift?

Yes

Financing

Are you interested in Financing for your purchase?

Subscribe to Emails

Be the first to hear about iGAM exclusive offers, sales, markdowns and new arrivals.

About This Item

Product Specifications

Model: WEISSER VERTOR ML-1L CNC Vertical Lathe
Year: 2018
Control System: Fanuc Series 32i
Turning Diameter: 17.72″

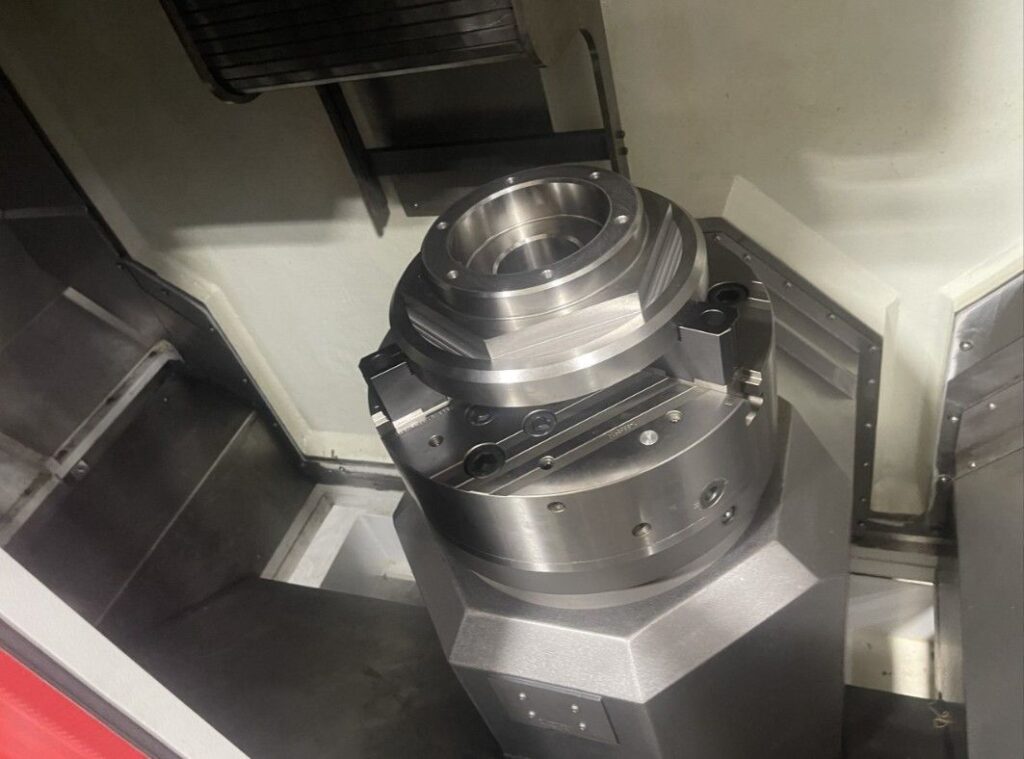

Chuck Size: 23.6″
Spindle Speed: Up to 3,500 RPM
Rated Spindle Speed: 1,200 RPM
Drive Power: 52 kW (100% CDF), 67 kW (40% CDF)
Dimensions (L x W x H): 118″ x 75″ x 102″
Weight: 24,251 lbs
Max Process Speed: 30 m/min
Ball Screw Diameter: X1 = 1.6″, Z1 = 1.6″
Number of Tools: 12
Tool Holder Type: VD140/50
Tool Flight Circle: 24.4″
Spindle Bearing Diameter: 5.9″

Key Features

Advanced Fanuc 32i CNC system for high-precision control
Vertical configuration with 23.6″ chuck for large, heavy workpieces
12-position tool turret allows flexible and efficient tool changes
High-speed spindle operation with excellent torque output
Sturdy cast construction ensures low vibration and high rigidity
Tool flight circle of 24.4″ accommodates larger tooling setups
Optimized for continuous-duty performance in industrial environments

Tailstock Features

Working Stroke: 7.9″
Max Peak Distance: 25.2″
Pressing Force: 850 daN
Spindle Bearing: Rigid, non-rotating design
Center Point Adapter: MK4 taper

Applications

Precision turning of large and heavy components
Automotive and aerospace part production
Energy sector components (valves, housings, hubs)
High-volume production and custom batch machining
Machining of castings and forged parts requiring stability
