▸ Product Specifications:

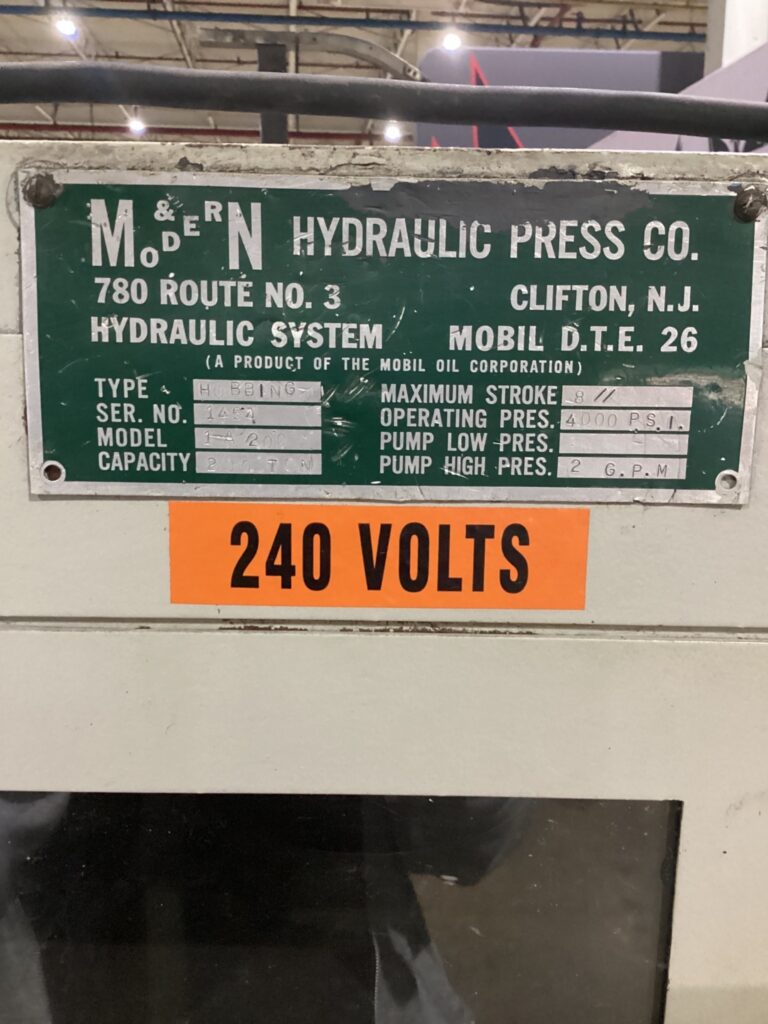

Manufacturer: MODERN HYDRAULIC CORP
Part Number: 1A-200

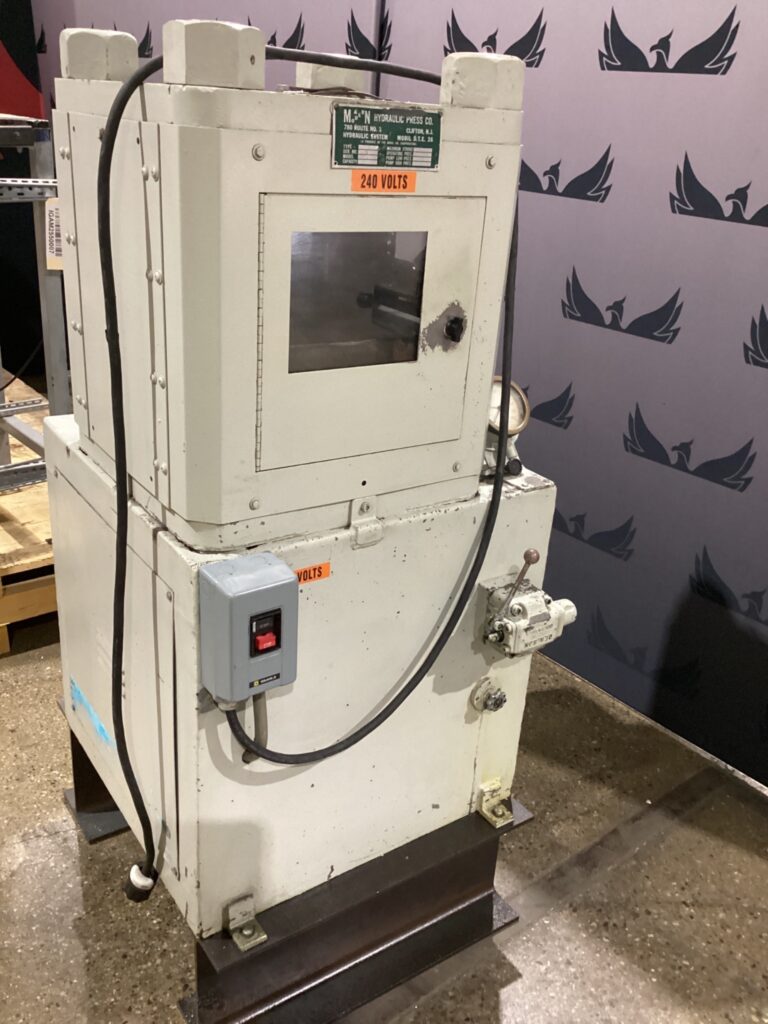

Press Type: 4-Post Hydraulic Hobbing Press
Capacity: 200 Tons
Stroke Length: 8 inches
Viewing Window Opening: 6 inches
Platen Area: 18″ x 18″
Between Posts: 14.625″ x 14.625″
Opened Height: 10″
Round Plates mounted on top and bottom Platten: 8″ Dia X 1.875″
Ram Diameter: 11″
Operating Pressure: 4000 PSI
GPM: 2
Motor: 220/440V, 3 Phase
Controls: Up/Down Manual Lever & pressure control
Weight: Approx. 3000 lbs
Dimensions: 36″ x 34″ x 67″ (L x W x H)
▸ Key Features:
• 200-ton forming capacity
• Precision-guided upstroke platen
• Pressure gauge and adjustable stroke
• Compact footprint for shop integration
• Ideal for gear hobbing and coining
▸ Applications:
• Gear hobbing and shaping
• Coining and embossing
• Industrial metal forming
• Tool and die shops
▸ Alternative Model Numbers:
1A-200-HD
1A-200-UP
1A-200-4PS
1A-200-MOD
